About This

• [1]QUANSHENG UVK5(8) is a new high-performance walkie-talkie in 2023. Its main functions are rich, firmware updates are supported, and the voice is clear and the call distance is long.

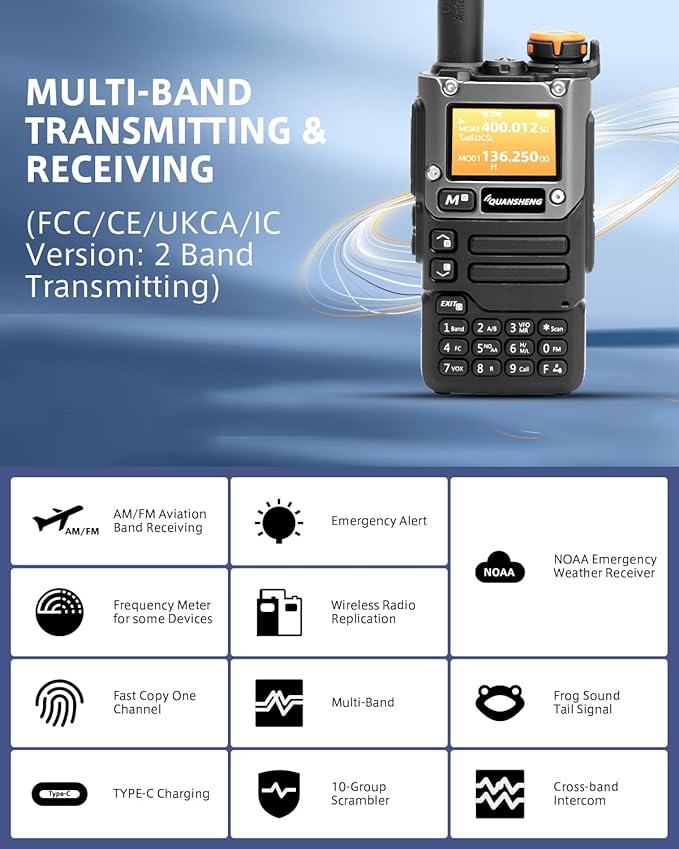

• [2] AM reception, FM radio, one-button frequency matching, NOAA weather forecast, boot password protection and other 48 function settings.
• [3] The Radio is necessary for traveling, survival, hiking, cycling, work, camping, fishing, Emergency Alarm. it is Walkie talkie lover's favorite.

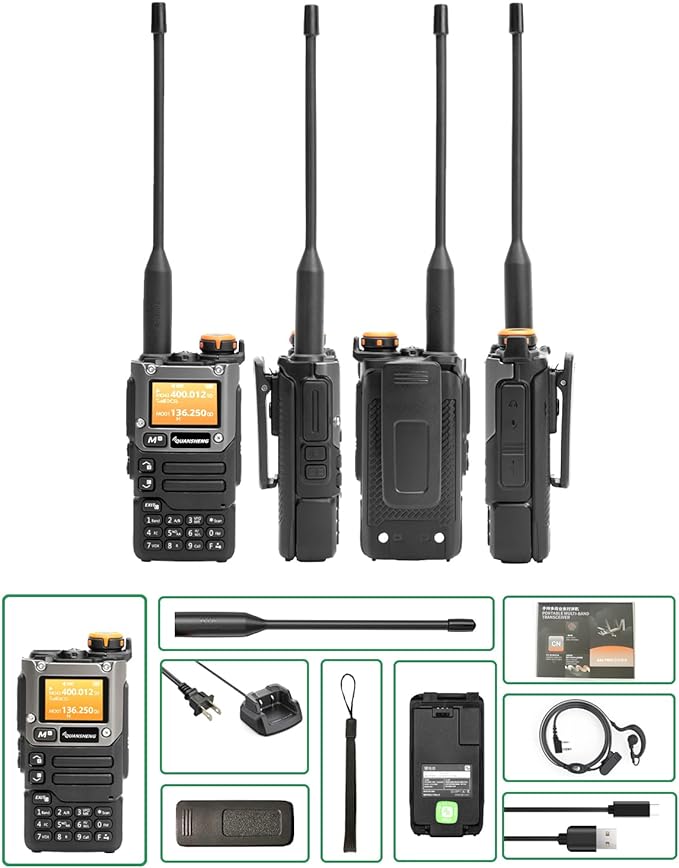

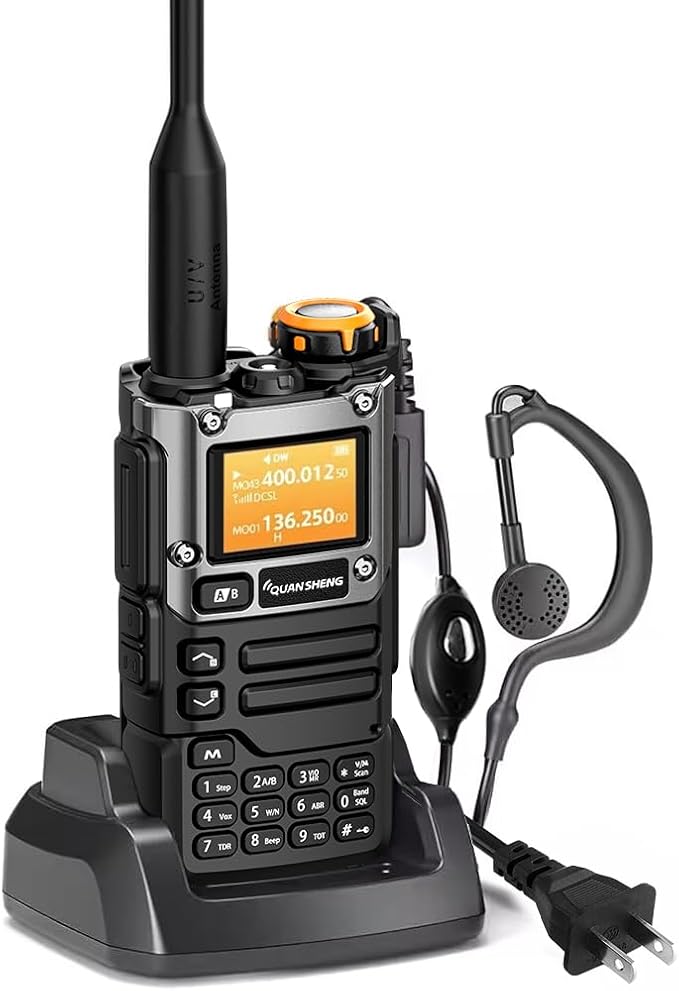

• [4]【 Items inside the box 】intercom host,Li-Battery ,Antenna,Belt Clip, Battery Charger（0.74m）,User Manual,Tpye-C direct charging line（1m）,Intercom earphones

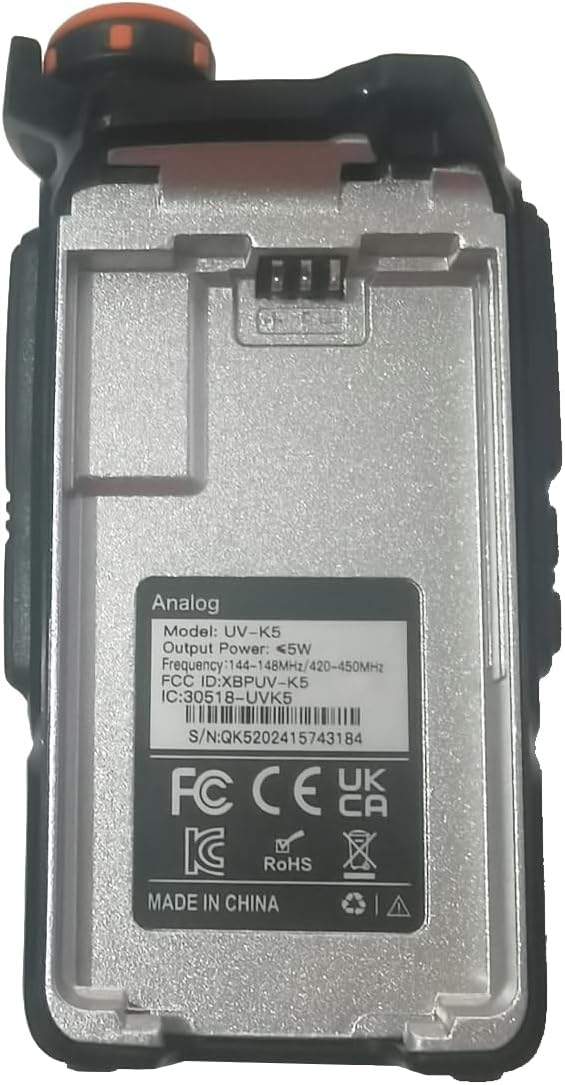

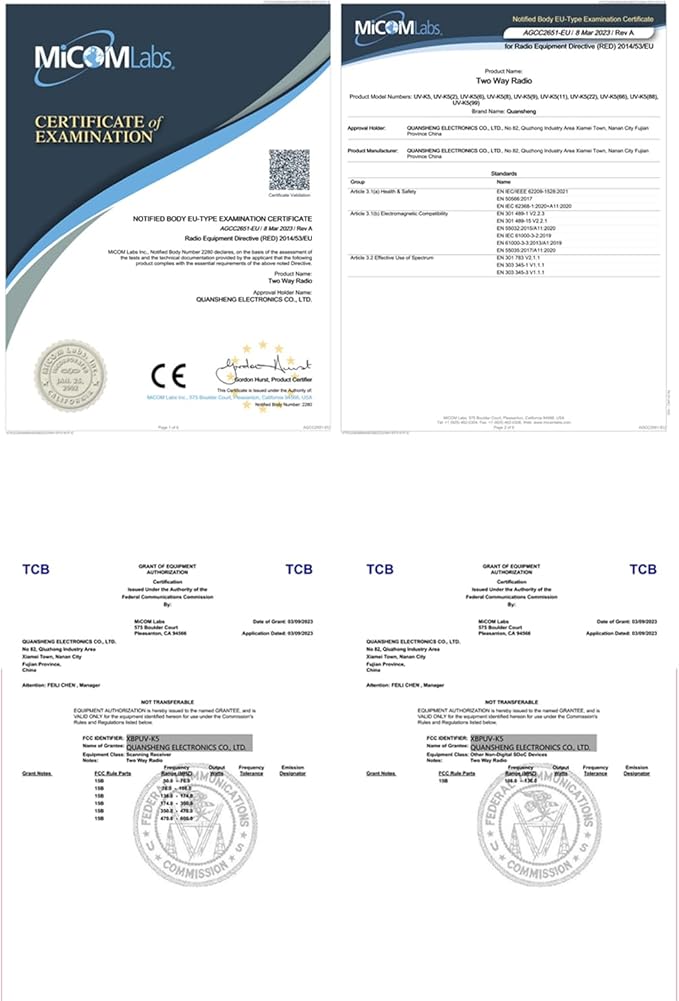

• 【Manufacturer】QUANSHENG Electronics co Ltd. 【FCC ID】XBPUV-K5
• Stray components :≤7.5uW Frontage power:70dB(25KHz),60dB(12.5KHz) Residual modulation:40dB Reference sensitivity:FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) - 121dBm WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm
• Transmit power:5W Transmit current:≤1.5A Maximum frequency offset：≤5KHz(25KHz),≤2.5KHz(12.5KHz) Modulation distortion:≤5%
• NOAA channel number:10 Battery capacity:1600mAh Audio power:≥0.5W Audio distortion:≤10%
• weight:234g Operating temperature:-20℃+60℃ Antenna impedance:50 euros Modulation mode:FM:11KOF3E(12.5KHz),16K0F3E(25KHz)
• Signal channel:200 Number of FM radios stored:20 Frequency stability:±1ppm Size:115mmX60mmX37.5mm

Overview

• Brand : QUANSHENG
• Number of Channels : 200
• Special Feature : Dual Band
• Frequency Range : 100-136 kHz (AM), 87.5-108 MHz (FM)
• Talking Range Maximum : 10 Kilometer
• Tuner Technology : UHF
• Voltage : 7.1 Volts
• Water Resistance Level : Not Water Resistant
• Product Dimensions : 1.48"D x 4.53"W x 1.48"H
• Number of Batteries : 1 Lithium Ion batteries required. (included)
